3-Axis Stabilizer For Lightweight Cameras

$39.99 $80.00
  • 3-Axis Stabilizer For Lightweight Cameras
  • 3-Axis Stabilizer For Lightweight Cameras
  • 3-Axis Stabilizer For Lightweight Cameras
  • 3-Axis Stabilizer For Lightweight Cameras
  • 3-Axis Stabilizer For Lightweight Cameras

3-Axis Stabilizer For Lightweight Cameras

$39.99 $80.00
Size:
Variant:
3-axis stabilizer for lightweight cameras
This the world’s first 3-axis gimbal stabilizer with a single rotatable handle designed to provide ease and better filming output. It is primarily designed for mirrorless DC, phones and action cameras, with photo focus/shutter button, video recording button and zoom control on its unique rotatable handle.

Enhanced version

Standard version



Standard version:

Rebranding the Concept of Filming

This the world’s first revolutionary gimbal stabilizer with a rotatable handle designed to provide ease and better filming output. Its flexible design improves filming accuracy and makes filming more convenient than using traditional gimbals.



wedding film demo

A short film shot with Sony 6300 and 3-axis stabilizer.




Original clips demo

To show the raw clips filmed with gimbal and some cameras (Sony, Fujifilm, iPhone7 plus) without any special editing like speed adjustment, software stabilization, color correction etc. The original sound in the clips are also kept on purpose.



Why is Unique?

Physical design (visible items):

  • The world’s first rotatable handle design, enables you to carry it with ease in addition to the standard fishing rod carry position. Carry mode makes it much easier to film at different angles especially for low angle shoot.
  • With special control cable (option), you can directly control the photo shutter/focus, video record, and zoom for popular cameras (Sony and Panasonic for the time being) making filming more convenient.
  • Roll track mode is supported, in addition to pan track, omni track and lock modes.
  • Light and portable. Compared with other big gimbals, the it has a lighter body and is primarily designed for lightweight cameras. Paired with the unique carry mode, a videographer has more flexibility and filming freedom.

System design (non visible items):

  • The it has a parallel bus (instead of a serial port that most other gimbals have), which has excellent extension capabilities. We’ve preserved a bus interface port on the handle (the hole above the zoom button) through which the can already equip many accessories and support for many more in the near future.
  • Using our own independently developed algorithms, specially developed over four years, has great controllable stability, excellent adaptability, and more extendable abilities.


Compatible with various lightweight filming devices

Is primarily created for lightweight cameras and is compatible with lightweight DSLR, mirrorless DC, mobile phones and action cameras. It comes with a special control cable which lets users control shutter/focus, video recording and zoom conveniently.



Two Transformable Handling Modes

Unlike other gimbal stabilizers which allow for straight holding only, it comes with 2 handling modes; the straight holding mode (which is suitable for high angle and medium angle filming) and the carry mode (which is best for low angle filming). Users can film easily at various angles because of its unique design.








Demo film of carry mode shooting at low angles



Also mobile phone compatible

It is the ideal stabilizer for mobile phone filming enthusiasts who like to use their mobile phones with other heavy camera accessories for high-quality filming output. It provides the balance between small scale handheld phone stabilizers (which does not allow inclusion of external camera accessories) and big scale stabilizers (which allow for inclusion of accessories but are too big for carrying convenience)


Test with 3-axis stabilizer and iphone7

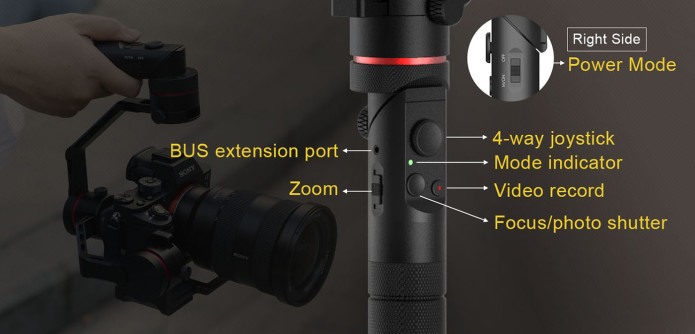

All Controls Integrated in the Handle Panel

With our specially designed connecting cable, you have direct shooting control for some popular cameras with buttons right on the handle, including focus/photo shutter, video record and zoom.

Currently supported camera control: Panasonic Lumix GH4/GH5, Sony mirrorless DC.

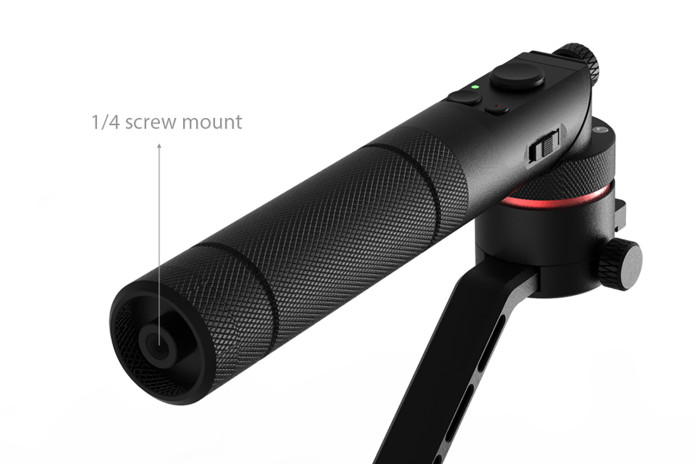

1/4 inch screw extendable

The bottom of the it handle has a ¼ inch threaded hole for users to connect a tripod. This allows you to sit the camera on a spot and helps to extend other ways of filming controls.



Following Modes

Filmmakers can shoot via various different modes.

Pan track mode
Roll and tilt axes are locked, pan left and right following the arm movement, pushing the joystick up and down to tilt.

Lock mode
Pan, roll and tilt axes are all locked, pushing the joystick to pan or tilt.

Omni track mode
Roll axis is locked, pan and tilt following the arm movement.

Roll track mode
Pan and tilt axes are locked,  gimbal can be rolled by pushing the joystick left and right, or by rolling your arm.



Strength and Durability in a Lightweight Body

The extremely light-weight stabilizer comes in at just 980g/2.16 lb (including the batteries) while its payload capacity reaches up to 1300g/2.87 lb, compatible with almost all mirrorless digital cameras on the market, as well as mobile phones, action cameras and even some models of DSLR cameras.

Notice: 1300g(2.87 lb) is just a rough estimation. The payload depends not only on the weight of the whole filming device (camera + lens), but also the position of its center of gravity.

If the weight is over 1300g but the center of gravity is close to the gimbal, it may also work.



Unique Foldable Handle Design

For Portability

This unique rotatable and foldable handle design allows it to be folded into carry mode.

When folded into carry mode, the dimensions are only 22 wide and 25cm long, and it can easily fit in a bag for transport.



High Decoupling System

With our brand new attitude resolving algorithm, each controlling axis is separated from each other, in order to avoid mutual interference.



Extendable Bus Interface

Thanks to the application of a local network controller, we’ve separately preserved a bus interface on the gimbal plate and handle, through which we can attach accessories adding more options and convenience.

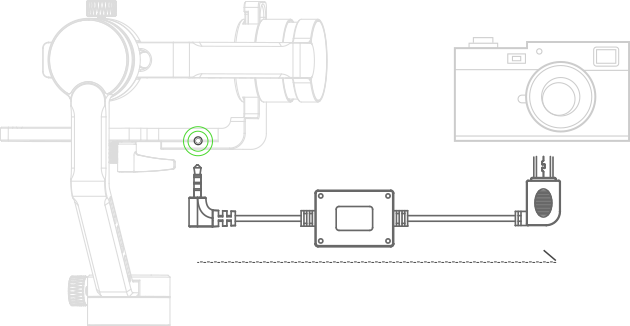

Example of BUS interface application

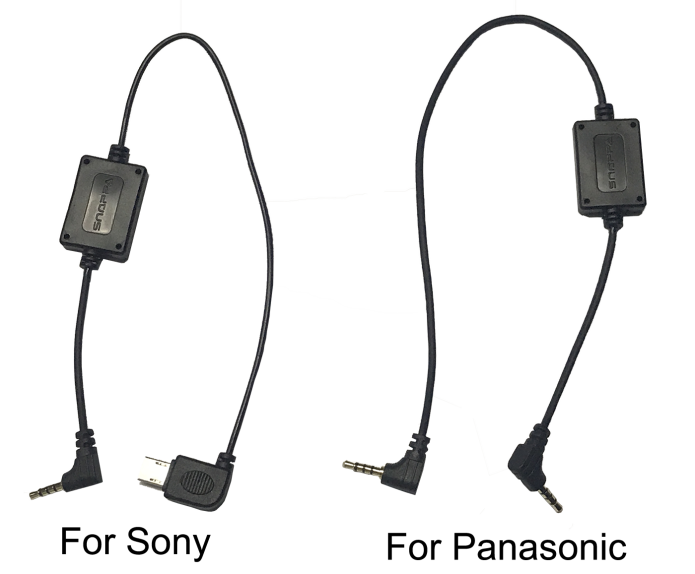

Camera Control Cable

(optional accessory)

With built-in bus system and our specially designed control cable accessory, we can realize the camera control through the handle buttons, realizing functions of photo focus/shutter, video record and zoom.





Dual Power Source that Keeps Your Camera Charged and Running

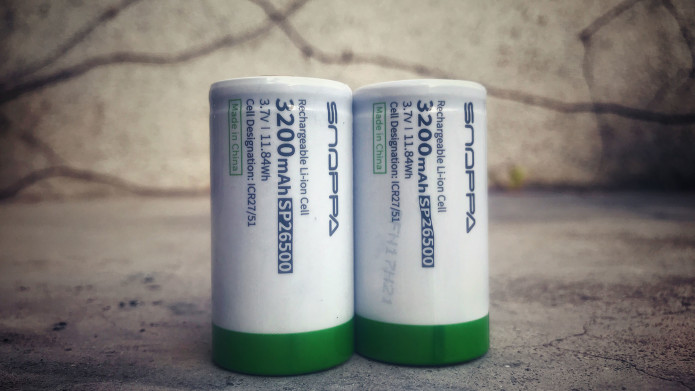

Equipped with 2 Li-ion batteries 26500 (3200mAh), which can support at least 12 hours of runtime. With the control cable connected, when the gimbal is powered on, it can directly charge your camera to prevent a dead battery from interrupting/ruining your shoot.


Specifications



Enhanced version:



The equipped with dual handles as well as a detachable central handle, giving you more options while filming or even during downtime between shoots.

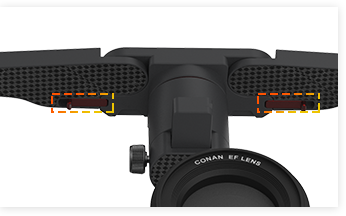

There’s a lock ring on the left and right arm, through which you can adjust the handle to any angle you want and then lock it.






Thåe three handles can work as a tripod that allow it to stand on the ground, without the need of an extra tripod.





Rotatable Handle

There’s a lock ring on the left and right arm, through which you can adjust the handle to any angle you want and then lock it.






1. Camera parameters

2. focus control

3. control wheel for camera parameters

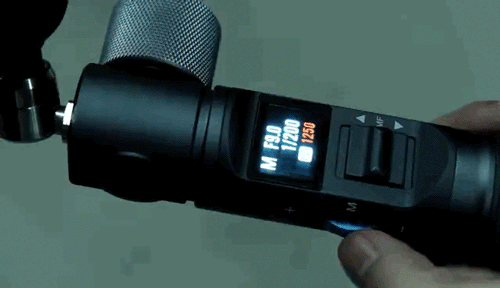

Integrates a 1.8 inch OLED color screen on its right handle, through which you can read the camera parameters in realtime, including ISO, aperture, and shutter speed.

With the control wheel on the side of the left handle, you can adjust the camera parameters directly, without the need of manually adjusting settings on the camera itself.

Focus can be adjusted by the slider. By pushing the focus button up and down you can easily control the focus position.

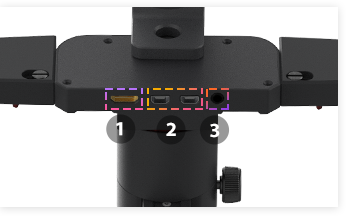

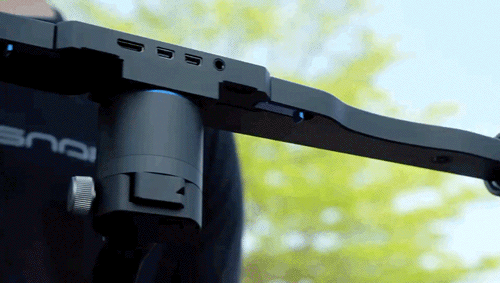

1.  HDMI port

2.  CAN bus port

3.  3.5mm Mic

Has a video output interface built-in allowing you to directly connect your camera and monitor through theintegrated HDMI ports. This prevents cable clutter from affecting the stability of your video, giving you an all around better viewing and recording experience.

The CAN expansion bus can easily connect with our focus controller (soon to be released), an external fill light, remote control and other accessories.

There is also an integrated 3.5mm external microphone jack, allowing you to attach a variety of microphones to the stabilizer. Attaching a high-quality microphone through the stabilizer will allow you to get better audio than the camera’s built-in microphone.

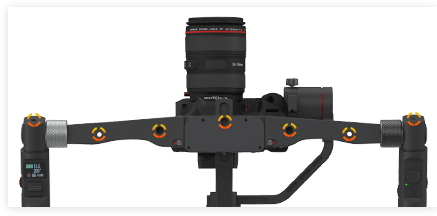

Extension Holes for External Devices

There are three 3/8 inch threaded holes and four 1/4 inch threaded holes on the horizontal arm, which are reserved for mounting accessories like external monitor, single handle, microphone support, light support, extension pole and so on.

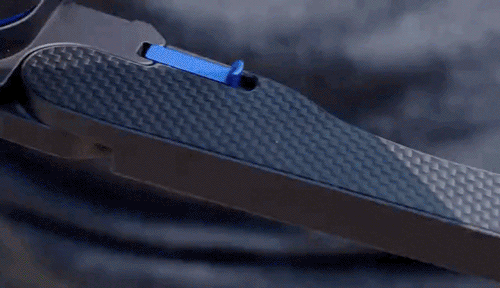

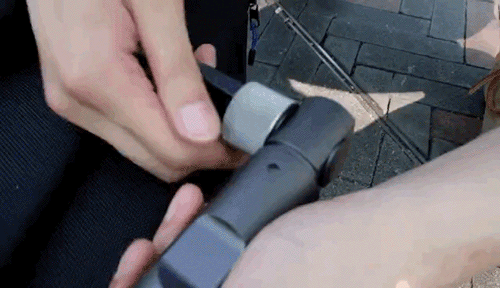

Collapsible arms(Quick spring lock)









The left and right arms collapsible. With the quick release spring locks on the joint of each arm, you can easily fold and unfold the arms quickly, without any troublesome mounting or un-mounting steps.






Fixing the Mounting Position

Normally you have to rebalance the gimbal after removing the quick release plate to maintain proper stabilization. But over here, we added a guide to the bottom of the gimbal plate, which allows you to quickly reattach the plate in the proper position.






portability

Normally you have to rebalance the gimbal after removing the quick release plate to maintain proper stabilization. But over here, we added a guide to the bottom of the gimbal plate, which allows you to quickly reattach the plate in the proper position.








Fixing the Mounting Position

Normally you have to rebalance the gimbal after removing the quick release plate to maintain proper stabilization. But over here, we added a guide to the bottom of the gimbal plate, which allows you to quickly reattach the plate in the proper position.












































FAQ

1) How long is the warranty?

Comes with a 24 month limited warranty for backers.We also ensure that every unit is free from manufacturing defects and handled with the utmost care during shipment.


2) Which filming devices are compatible with stabilizer?

Stabilizer is primarily designed for light weight filming devices. The actual payload is related not only to the weight of device itself (camera+lens), but also to the position of the center of gravity. If the total weight of filming device is beyond 1300g while the center of gravity is close to the gimbal, it may also work.


3) Why not to make the stabilizer compatible with heavier cams?

Technically it would be easy for us to make the stabilizer with heavier weights (for example, by enlarging the motors and arms), but we would have to sacrifice the portability and make the gimbal heavier. This is not necessary for users of more lightweight cams and would make the whole experience unconformable.

We have to find a balance between weight/portability and payload.  The higher the payload, the heavier the gimbal will be.

Stabilizer is designed for lightweight filming devices, with the ability of bearing more weight than ordinary small-scale handheld gimbals for action cameras or phones (in some cases people may add heavier accessories like wide-angle lenses, lights and microphones etc to the phone)  while it is not as heavy as large-scale gimbals for big DSLRs or pro cams. In this case users can have a much better experience filming with lightweight cameras.

For those who need to film with heavier cameras, can choose Enhanced version, which is also very uniquely designed and more powerful to bear more weight, but the body is much heavier than current model M.

4) Will there be control cable support for other cameras?

Currently we only support Sony and Panasonic for the time being.


5) How long does it take to get a full battery charge?

The battery in Kylin M requires 3 hours from full discharge to full charge with our supplied charger.


6) Is waterproof?

No, it’s just splash proof.
